APD² Monitoring System with Data Acquisition:

· Will Save Time and Money

· Insure Compliance with FAA Regulations and OEM Test Requirements

· Provides a Convenient and Easy to Understand Method of Testing and Reporting

· Produces Accurate Records for Stored Data for FAA Audit Compliance and Accountability

· Eliminates Hard to Support Component Testing Procedures

· Easy to Interpret Strip Chart That Displays Pressure, Flow and Temperature Simultaneously

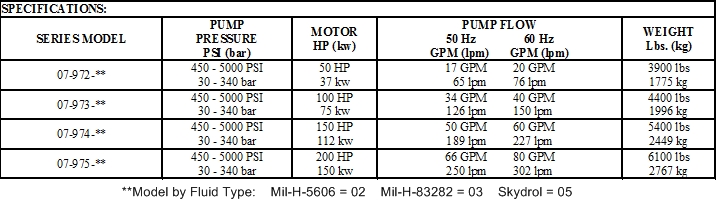

STANDARD FEATURES:

· Panel Mounted Pump Controls for Ease

of Operation and Safety

· Safety Glass Sliding Doors with ?” Tempered Glass

with Heavy Duty Door Rollers and Rails

· Complete Pump Pressure Adjustment (450 – 5000 PSI)

· Complete Pump Flow Adjustment (0 – Full GPM)

· Five Pumps

1. Oilgear? Pressure Compensated Pump

2. High Pressure Hand Pump (10,000 PSI)

3. Work Sink Drain Pump

4. Automatic Nano Filtration Pump

· High Pressure Hand Pump

1. Digital Pressure Gauge (.25% Accuracy)

2. Pressure Release Valve

3. Dedicated Port

· Super Clean Filtration – Industry Leading

Filtration Ensures Quality While Increasing

Aircraft Component Life and Decreasing

Aircraft Filter Changes

· High Efficiency, Non-Bypass Pressure Filter

(3 Micron Absolute)

· Reservoir Kidney Loop Filter (3 Micron Absolute)

· Sink Drain Filter (3 Micron Absolute)

· Exclusive Automatic Nano Filtration System

(.25 Micron Absolute)

· 4-Way Directional Flow Control Valve

Electrically Operated with Port Indicator Lights

for Testing Cylinders

· Calibration

· Calibration parameters are stored in the electronic

interface and the software automatically reads the

calibration parameters from the devise when launched

· Operator can adjust the sensor parameters during

calibration for the correct accuracy needed

· Software Parameters

· Main screen displays strip chart enabling the hydraulic

technician to have a more in depth understanding of the

operation/test procedure and troubleshooting of the

component under test

· Color coding of the parameters are easily read

· Software Includes

· Viewing of Graph History

· Displaying and Hiding of Individual Graph Plots

· Adjusting Graph Scale

· Changing Alarm History

· Data Acquisition

· Operational Warning Lights

· 1. Pressure Filter Condition LED Indicator

· 2. Kidney Loop Pump Filter Condition LED

Indicator

· 3. Reservoir Low Level LED Warning Indicator

· 4. High Fluid Temperature LED Warning Indicator

· 5. Nano Filter Condition LED Warning Indicator

· Reservoir Kidney Loop Pump

· Continuously Filters Fluid

· Continuously Cools Fluid

· Automatic Oil Temperature Control

· Oil Polishing System

· Extremely Clean Nano Filtration with Automatic

Timer and Operation LED Indicator Light

· Additional Features

· All Welded, 14 Gauge B3 (Brushed Finish)

Stainless Steel Cabinet

· Illuminated Work Area Provided By The Over

Head Work Sink Lights

· Easy Access Fluid Sample Port to Meet

Quality Parameters

· Guaranteed No Leaks

Safety Drip Pan Completely Covers Bottom

· Work Sink with Perforated Metal Grating

· Heavy Duty All Welded 1/4" Thick Wall

Tubing Frame with Fork Lift Brackets

· Easy Maneuvering Ensured By Two Fixed and

Two Swivel Castors with Stability Provided By

the Heavy Duty Floor Lock

· Work Sink Drain Pump with Filter (4 GPM)

· Durable Laser Engraved, Aluminum Placards

· Panel Mounted Operational Instructions

· Current Pressure Gauge and Flow Meter

Certificates of Calibration

· Safety Features

· High and Low Pressure Indication Alarm

· High and Low Flow Indication Alarm

· High and Low Oil Temperature Indication Alarm

· System By-Pass Relief Valve (7500 PSI)

· Safety Glass Doors to Protect Operator

· Isolated Work Sink – No Hydraulic Controls Located

with in Sink Area
